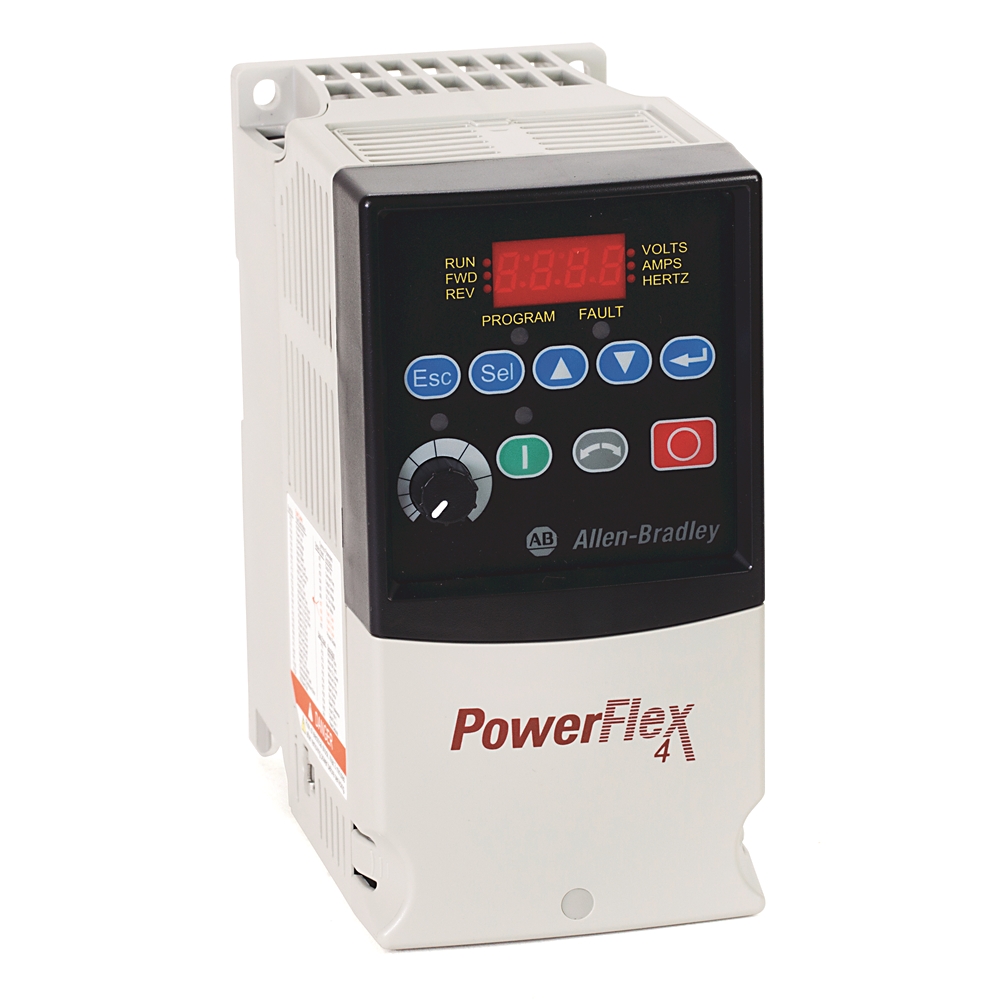

PowerFlex 4- 1.5 kW 2 HP AC Drive 22A-D4P0N104

PowerFlex4 AC Drive, 480VAC, 3PH, 4 Amps, 1.5 kW, 2 HP,Frame Size A, Panel Mount – IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485

• 200-240V plug-and-play – Pre-tuned for most American single-phase/3-phase motors.
• Auto-Tune in 90 seconds – Self-adapts to your motor during coffee break.
• Built-in RS485 DF1 – Talks directly to MicroLogix PLCs without expensive adapters.

Series Products:

• 22A-D4P0F104：PowerFlex4 AC Drive, 480VAC, 3PH, 4 Amps, 1.5 kW, 2 HP,Frame Size A, Flange Mount – IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485
• 22A-D4P0H204：PowerFlex4 AC Drive, 480VAC, 3PH, 4 Amps, 1.5 kW, 2 HP,Frame Size A, Replacement Plate Drive – IP20, NEMA/UL Type Open, LED Display, Fixed Digital Keypad / Flash ROM, No CE Compliant Filter, RS485
• 25A-D4P0N104：PowerFlex 523 AC Drive, 380…480V AC, 3 Phase, 4 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
• 25B-D4P0N104：PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 4 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter

22A-D4P0N104 is an AC inverter of the PowerFlex 4 series. It focuses on compact design, high cost performance and stable control performance, and is suitable for speed regulation scenarios of small and medium-sized motors.

1. Core electrical parameters: The inverter is a 3-phase input design, suitable for 380 – 480VAC voltage, the voltage input range is compatible with 342 – 528VAC, and can cope with small fluctuations in the industrial power grid; the rated output current is 4.0A, corresponding to the rated motor power of 1.5kW (2 horsepower), the output voltage range is 0 – 460VAC, the output frequency range is 0 – 240Hz, and the body adopts A The base design weighs about 0.91kg and takes up little installation space.
2. Basic control and operating features: It supports V/Hz control and slip compensation, and also has sensorless vector control capabilities, which can accurately adjust the speed and torque of the motor to adapt to different load requirements such as fans, water pumps, and simple lifting equipment. Equipped with a fixed numeric keyboard and LED display, parameters can be set on site without additional programming equipment. Configuration can also be completed through special software, with a low operating threshold.
3. Communication and expansion capabilities: The built-in RS-485 communication interface can meet basic device networking and data interaction needs; an optional serial conversion module is also available to adapt to various controllers with DF1 messages. It can also be deeply integrated with the Logix control platform to simplify parameter and label programming and shorten the development time of system construction.
4. Protection and safety: The standard protection level is IP20, which is an open structure. An optional IP30 protection kit can be installed to improve the protection effect. It has inverter overload protection, slope adjustment and fast start functions. It is also equipped with overvoltage and undervoltage protection circuits, which can effectively avoid damage to the motor and inverter caused by abnormal power grid or load fluctuations, and improve the operational stability of the equipment.
5. Adaptation scenarios and installation: It supports various installation methods such as panel installation, and can be installed densely in an environment of 40°C. If a minimum distance is reserved, it can adapt to working environments up to 50°C. It is widely used in mechanical tools, conveyors, material handling systems and other scenarios. Through precise speed regulation of motors, it helps equipment achieve energy-saving operation and efficient production.
