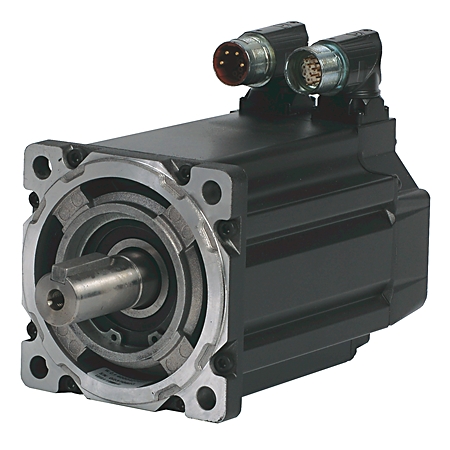

MP-Series MPM 480V AC Rotary Servo Motor
Technical Specifications
| Duty cycle | S1 |
| Frame size acc. to IEC | 165 mm |
| IP-rating | IP67 |
| Model | Rotary current synchronous motor |
| Nominal torque | 21.1 Nm |
| Number of phases | 3 |
| Operation temperature | 0…40 °C |
| Rated frequency | 0…400 Hz |
| Rated performance at rated frequency | 4.3 kW |
| Rated rotational speed at rated frequency | 3000 1/min |
| Rated voltage | 460 V |
| Voltage type | AC |
