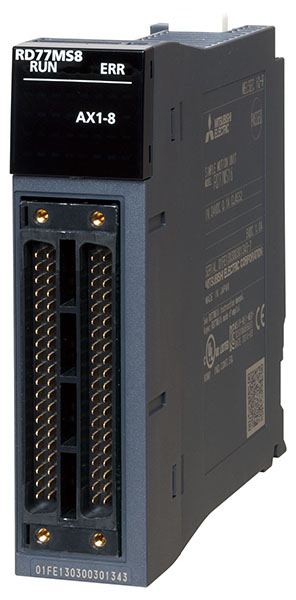

Mitsubishi PLC Motion Control Module RD77MS8

Mitsubishi Q Series motion module, 8-axis simultaneous control, High-precision, positioning (4 Mpps pulse), Q-bus PLC integration, MR-J4/MR-J5 servo compatible, GX Works3 configurable, High-speed motion CPU

• High-Speed Processing: Equipped with a powerful dedicated CPU for motion calculations, ensuring low latency and smooth, jitter-free motion even for 8-axis synchronized tasks.
• Interface Compatibility: Seamlessly connects to Q Series PLCs via the Q-bus, enabling fast data exchange (real-time communication) between the PLC’s central control and the motion module for dynamic parameter adjustment.
• Axis Control Capacity: Supports up to 8 axes of simultaneous motion control, enabling complex operations such as linear interpolation (2–8 axes), circular interpolation (2 axes), helical interpolation (3 axes), and electronic cam (ECAM) synchronization.
• Programmability: Configurable via Mitsubishi’s GX Works3 software, with support for IEC 61131-3 standard languages (Structured Text, Ladder Logic) and dedicated motion control function blocks for streamlined setup.
