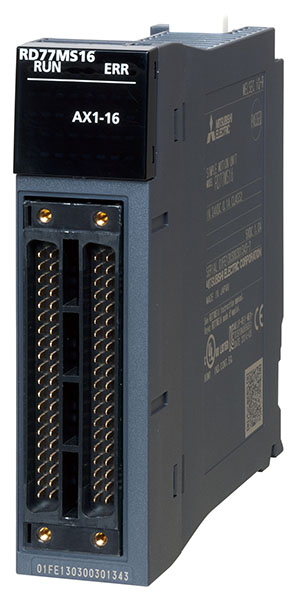

Mitsubishi PLC Motion Control Module RD77MS16

Mitsubishi Q Series motion module, 16-axis simultaneous control, High-precision (4 Mpps pulse output), Q-bus PLC integration, MR-J4/MR-J5 servo compatible, GX Works3 configurable, Dedicated high-speed motion CPU

• Connectivity: Integrates with Q Series via high-speed Q-bus for real-time data exchange.
• Precision: Offers 4 Mpps max pulse output for ultra-accurate absolute/relative positioning.
• Servo Compatibility: Optimized for Mitsubishi MR-J4/MR-J5 servo amplifiers/motors.
• Programming: Configurable via GX Works3, with IEC 61131-3 support and motion function blocks.
• Product Identity: A high-performance 16-axis motion control module by Mitsubishi Electric, exclusive to Q Series PLCs.
• Core Function: Supports simultaneous control of up to 16 axes, enabling interpolation (linear/circular/helical) and ECAM/E-Gear.
