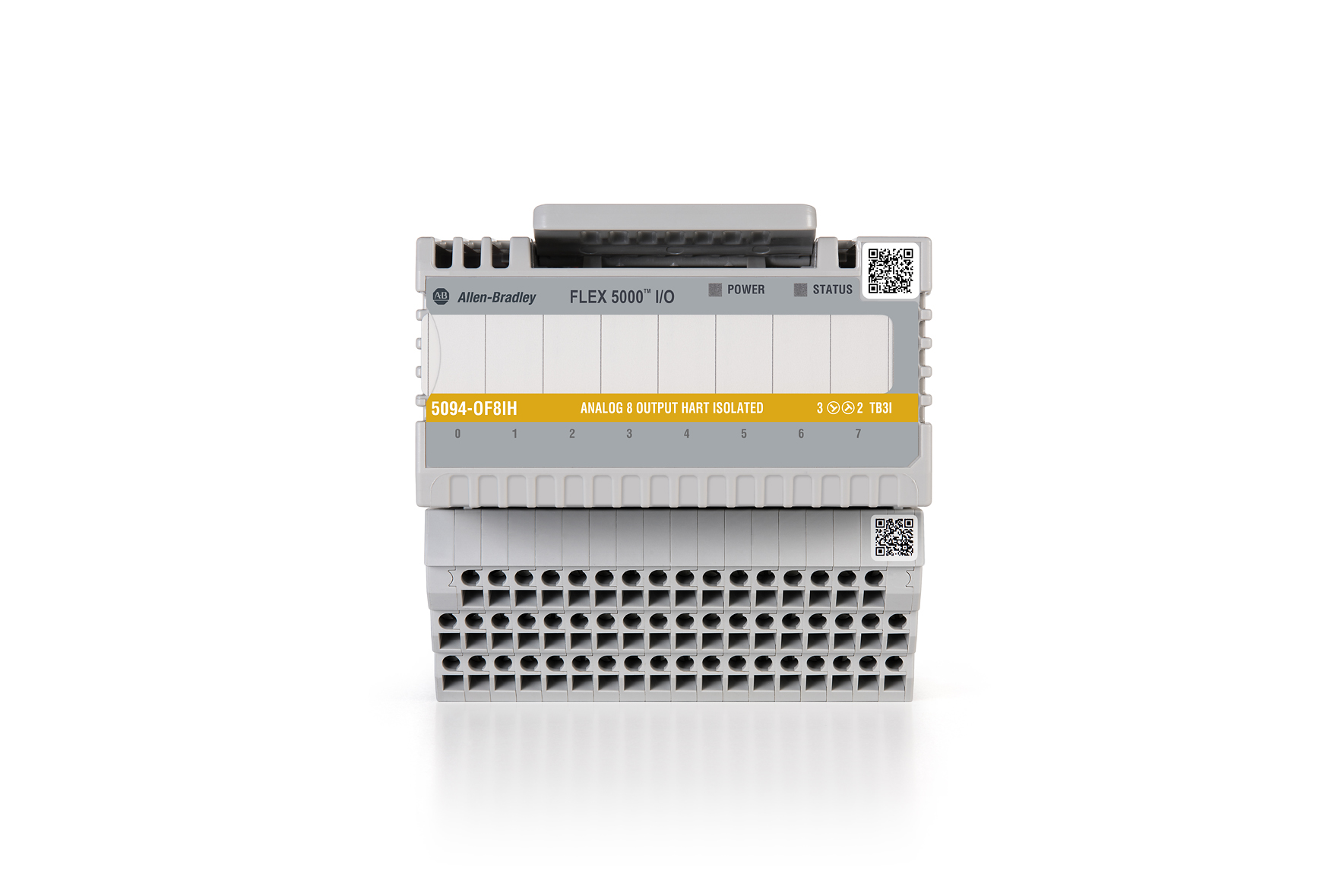

5094-OF8IH Analog 8 Output Isolated HART PLC Module

Manufacturer	Allen Bradley
Part Number	5094-OF8IH
Product Type	PLC

Send Inquiry

Global Delivery

12 months Warranty

100 % Authentic Parts

Dispatch immediately

24 hours to 7 Days

Hassle-free return

Description
Reviews (0)

Overview

5094-OF8IH is an 8-channel isolated analog output module with 15V DC backplane, 35 mA maximum, Producer/Consumer communication model, communicates with Logix 5000 controller via EtherNet/IP adapter, standard DIN rail mounting (35 x 7.5 mm).

Specification

Features	Description
Channel Configuration	8 independently isolated output channels supporting single-ended connection
Signal Types	• Current: 0…20 mA, 4…20 mA (HART) • Voltage: ±10V DC, 0…10V DC, 0…5V DC
HART Support	Each channel independently supports HART 7.0 protocol, enabling communication with HART smart devices for device diagnosis and parameter configuration
Isolation Performance	• Inter-channel isolation • Isolation between system side and field side (250V continuous, basic insulation) • Isolation from SA power supply to channels/SSV and SA to FE
Diagnostic Functions	Under-range/over-range detection, open-circuit detection, connection fault detection, and HART communication status monitoring
Calibration Capabilities	Factory-calibrated with support for user calibration to improve measurement accuracy
Hot-Swap Capability	Supports RIUP (Replaceable In-Place Under Power) function, allowing module replacement with field power removed
Environmental Adaptability	Operating temperature: -40°C to +70°C, suitable for harsh industrial environments

FAQ:

1.How many independently isolated output channels does the 5094-OF8IH have?

5094-OF8IH has 8 independently isolated output channels and supports single-ended connections.

2.What current and voltage signal types does the 5094-OF8IH support?

Current signal:
0…20mA
4…20 mA (supports HART 7.0 protocol communication)
Voltage signal:
±10V DC
0…10V DC
0…5V DC

3.What is the difference between 5094-OF8IH and 5094-OF8?

Comparison Item	5094-OF8IH	5094-OF8
Core Identification	8-channel isolated analog output module (with HART)	8-channel isolated analog output module (base model)
HART Support	✓ Each channel independently supports HART 7.0 protocol ✓ Communicates with HART smart devices ✓ Enables device diagnostics and parameter configuration	✗ HART protocol not supported ✗ Basic analog output functionality only
Signal Types	Current: 0…20 mA, 4…20 mA (HART) Voltage: ±10V DC, 0…10V DC, 0…5V DC	Current: 0…20 mA, 4…20 mA Voltage: ±10V DC, 0…10V DC, 0…5V DC
Diagnostic Functions	Basic diagnostics + HART communication status monitoring	Basic diagnostics (under-range/over-range, open circuit, connection fault)
Application Scenarios	• Integration with HART smart devices required • Remote diagnostics and parameter configuration needed • Predictive maintenance systems	• Basic analog control applications • No smart device communication required • Cost-sensitive projects
Model Derivatives	5094-OF8IHXT (with conformal coating) available	No conformal coating variant for the non-HART model

Looking for Original New 5094-OF8IH Analog 8 Output Isolated HART PLC Module?

We supply this 5094-OF8IH mainly to system integrators and maintenance teams for replacement and retrofit projects.
