SIMATIC S7-400 is a large modular programmable logic controller (PLC) under the Siemens brand. Its CPU (Central Processing Unit) serves as the core of the system and is renowned for its powerful processing capabilities, high reliability, and flexible scalability. It is particularly suitable for handling complex tasks and large amounts of data in medium and high-performance control fields.

Table of Contents

SIMATIC S7-400 CPU Feature:

High reliability and fault tolerance

Redundant design support: Some models (such as CPU 417-4H) support hot redundancy (H system), meaning that the primary and backup cpus operate synchronously. When the primary CPU fails, the backup CPU can seamlessly switch within ≤150ms, ensuring that the production process is not interrupted. This is suitable for scenarios with extremely high downtime losses (such as continuous chemical reactions and power dispatching).

Hardware-level fault detection: Equipped with built-in power monitoring, module diagnosis, and program verification functions, it can detect abnormalities in the internal circuits, memory, and communication interfaces of the CPU in real time. Fault information is fed back through indicator lights or software (such as STEP 7), facilitating quick troubleshooting.

Wide temperature range and anti-interference: Industrial-grade design, the operating temperature range is typically 0 to 60℃ (some models support a wide temperature range of -25 to 70℃), and the anti-electromagnetic interference (EMC) complies with IEC 61131-2 standard, making it suitable for the complex electromagnetic environment in industrial sites.

Powerful computing performance

High-frequency processor: It adopts a 32-bit RISC processor with a maximum frequency of up to 1.2GHz (such as the high-end model CPU 416-5H), and the execution time of a single instruction is as low as 0.01μs, which can efficiently handle large-scale user programs (supporting up to 8MB of program memory).

Multitasking: Supports cyclic tasks, interrupt tasks, and scheduled tasks based on priority. For example, an emergency shutdown instruction (the highest-priority interrupt) can interrupt normal cyclic tasks to ensure real-time response to critical operations.

Floating-point operation capability: Natively supports 32-bit / 64-bit floating-point operations, with precision meeting complex process calculations (such as flow accumulation, temperature PID regulation), without the need for additional software expansion.

Flexible scalability

The S7-400 adopts a modular rack structure, with the CPU as the core module. Flexible configuration of I/O and functional modules can be achieved through rack expansion

Rack type: Supports UR (Universal rack, up to 18 module slots), CR (Compact rack, up to 12 slots), a single system can be expanded to 4 racks (connected via IM 460/461 interface modules), and supports thousands of I/O points at most

Compatible modules: It can be matched with digital I/O modules (such as SM 421 input, SM 422 output), analog I/O modules (such as SM 431 input, SM 432 output), and special function modules (such as counter module FM 450, positioning module FM 453) to meet different control requirements.

Memory expansion: Some models support external memory cards (such as Micro SD cards), with expandable data memory (up to 16MB) for storing historical data, recipe parameters, etc.

Perfect communication function

The S7-400 CPU is equipped with multiple communication interfaces and supports mainstream communication protocols in the industrial field, achieving seamless interconnection between “PLC-device”, “PLC-PLC”, and “PLC-upper computer”.

Communication interface type	Support protocols/functions
MPI/DP interface	MPI (Multi-point interface, used for communication with HMI or other S7 PLCS), PROFIBUS DP (high-speed fieldbus, with a maximum rate of 12Mbps)
Profinet interface	PROFINET IO (Real-time Ethernet, Rate 100Mbps), PROFINET CBA (Component Automation)
Ethernet interface	TCP/IP, ISO-on-TCP, S7 protocol
Other extension interfaces	Extend protocols such as PROFIBUS, Profinet, Modbus RTU/TCP through the communication processor (CP 443-1/443-5)

Comparison of performance and functions of different models of Siemens S7-400

Siemens S7-400 series PLCS can be classified into two major camps based on “redundancy capacity” and “performance level” : non-redundant type and redundant type (H system). Different models vary significantly in terms of computing performance, memory capacity, communication capability, and functional expansion, which directly determine their applicable scenarios. The following is a horizontal comparison of mainstream models from three aspects: core parameters, functional features, and applicable scenarios, providing a reference for selection

Comparison of Core performance parameters (Basic Dimensions)

Core performance parameters directly affect the efficiency and scale of PLC processing tasks, including computing speed, memory capacity, and I/O expansion capability, and are key indicators for differentiating model positioning.

Part Number	Performance positioning	Processor architecture	Instruction execution time (typical value)	Program memory	Data memory
Non-redundant type
CPU 412-1	Entry-level non-redundant	32-bit RISC	0.1μs	1.5MB	1MB
CPU 414-3	Mid-to-low-end non-redundant	32-bit RISC	0.05μs	4MB	2MB
CPU 416-3	Mid-to-high-end non-redundant	32-bit RISC	0.03μs	6MB	3MB
CPU 417-4	High-end non-redundant	32-bit RISC	≤0.01μs	8MB	4MB
CPU 412-2 PN	Compact and non-redundant	32-bit RISC	0.08μs	2MB	1.5MB

SIMATIC S7-400 CPU PLC Part Number

6ES7412-1XJ07-0AB0 CPU412-1, MPI/DP, 512 KB
6ES7412-2EK07-0AB0 CPU412-2 PN, 1 MB, 2 SCHNITTSTELLEN
6ES7412-2XK07-0AB0 CPU412-2, MPI/DP, 1 MB

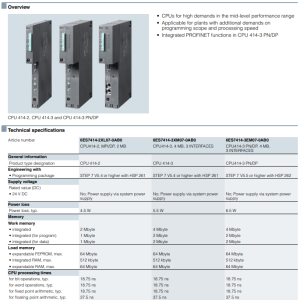

6ES7414-2XL07-0AB0 CPU414-2, MPI/DP, 2 MB
6ES7414-3EM07-0AB0 CPU414-3 PN/DP, 4 MB, 3 INTERFACES
6ES7414-3FM07-0AB0 CPU414F-3 PN/DP, 4 MB, 3 INTERFACES
6ES7414-3XM07-0AB0 CPU414-3, 4 MB, 3 INTERFACES
6ES7416-2FP07-0AB0 CPU 416F-2, MPI, PROFIBUS, 8 MB
6ES7416-2XP07-0AB0 CPU 416-2, MPI, PROFIBUS, 8 MB
6ES7416-3ES07-0AB0 CPU416-3 PN/DP, 16 MB, 3 INTERFACES
6ES7416-3FS07-0AB0 CPU416F-3 PN/DP, 16 MB, 3 INTERFACES
6ES7416-3XS07-0AB0 CPU 416-3, 16 MB, 3 INTERFACES
6ES7417-4XT07-0AB0 CPU 417-4, 32 MB, 4 INTERFACES

Version	CPU	Article number
V6.0.4 V7.0.0	CPU412-2 PN	6ES7412-2EK06-0AB0 6ES7412-2EK07-0AB0
	CPU414F-3 PN/DP	6ES7414-3FM06-0AB0 6ES7414-3FM07-0AB0
	CPU414-3 PN/DP	6ES7414-3EM06-0AB0 6ES7414-3EM07-0AB0
	CPU416F-3 PN/DP	6ES7416-3FS06-0AB0 6ES7416-3FS07-0AB0
	CPU416-3 PN/DP	6ES7416-3ES06-0AB0 6ES7416-3ES07-0AB0
V6.0.5	CPU412-5H PN/DP	6ES7412-5EK06-0AB0
	CP414-5H PN/DP	6ES7414-5HM06-0AB0
	CPU416-5H PN/DP	6ES7416-5HS06-0AB0
	CPU417-5H PN/DP	6ES7417-5HT06-0AB0
V7.0.0	CPU412-1	6ES7412-1XJ07-0AB0
	CPU412-2	6ES7412-2XK07-0AB0
	CPU414-2	6ES7414-2XL07-0AB0
	CPU414-3	6ES7414-3XM07-0AB0
	CPU416-2	6ES7416-2XP07-0AB0
	CPU416F-2	6ES7416-2FP07-0AB0
	CPU416-3	6ES7416-3XS07-0AB0
	CPU417-4	6ES7417-4XT07-0AB0
V8.1.1 V8.1.2	CPU410-5H Process Automation	6ES7410-5HX08-0AB0

Selection Considerations for Simatic S7-400

When choosing the S7-400 PLC, in addition to determining the above types, it is also necessary to consider:

CPU performance level: Under the same type (such as standard type), different CPU models (such as 412, 414, 416, 417) have differences in processing speed, working memory capacity and scalability. The selection should be based on the scale and complexity of the project.

Programming software: S7-400 usually uses Siemens’ STEP 7 software for hardware configuration and programming. For fault-safe type (F/FH), additional S7-F Distributed Safety or S7-F Systems option packages are also required to configure and program the safety functions.

Module matching: Select the corresponding I/O modules (digital quantity/analog quantity), communication modules (such as PROFIBUS, PROFINET, Ethernet/IP), functional modules and power supply modules, etc. according to actual needs.

Conclusion：

The SIMATIC S7-400 CPU family provides strong core control support for mid-to-high-end complex automation tasks through cpus of different performance grades, modular design, powerful communication networking capabilities and high reliability. Whether it is a standard application or a special occasion that requires redundancy or safety features, a suitable CPU model can basically be found.
