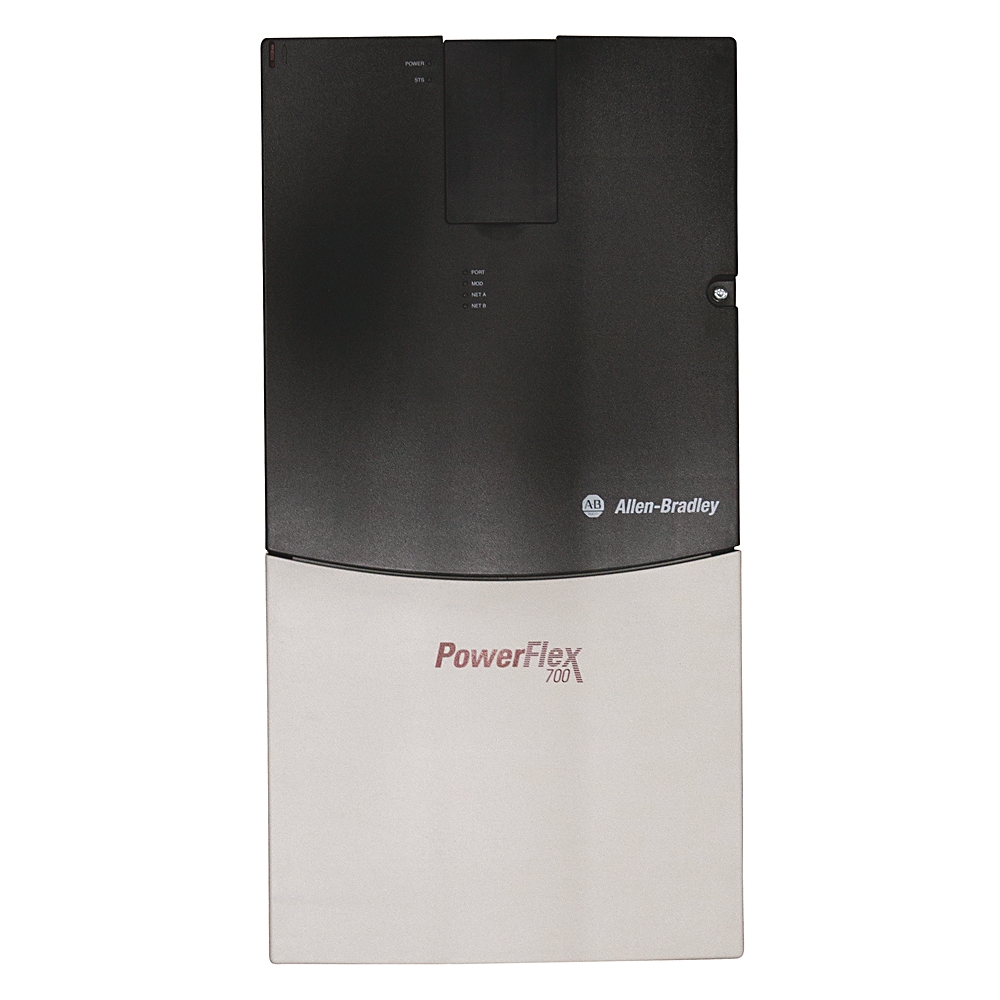

PowerFlex 700 AC Drive 20B 20BE125A0AYNANC0

PowerFlex700 AC Drive, 600 VAC, 3 PH, 125 Amps, 125 HP Normal Duty, 100 HP Heavy Duty, IP20 / Type 1, with conformal coating, No HIM (Blank Plate), Brake IGBT Installed, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Vector Control with 24V I/O, No Feedback

• 575V 3-phase input – Ready for U.S. industrial high-voltage applications.
• 125A continuous output – Handles toughest loads with 150% overload capacity.
• Built-in Safe Torque-Off – SIL 3/PLe safety without additional components.
• Advanced harmonic filtering – Meets IEEE 519 standards.
• UL/cUL & CE certified – Compliant with North American/global regulations.

Series Products:

20BE125F0AYNANC0,20BE125G0AYNANC0
20BD125A0AYNANC0,20BR125A0AYNANC0
20BC125A0AYNANC0,20BE125A0ANNANC0
