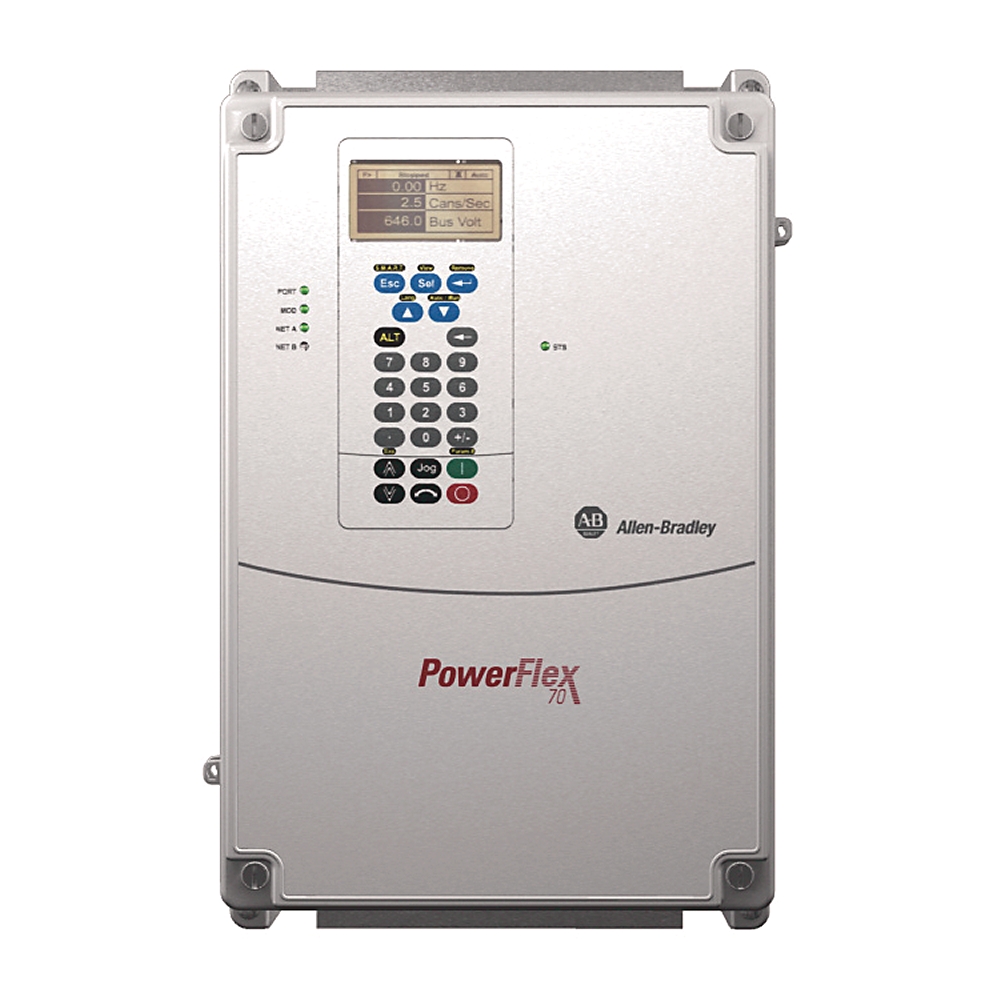

PowerFlex 70 AC Drive 11 A at 7.5 Hp 20A 20AD011C0AYNANC0

Products Introduce

20AD011C0AYNANC0 is a PowerFlex 70 series AC inverter. It adopts a C-frame design. Judging from the coding and the C suffix model characteristics of the same series, its installation method supports wall-mounting or machine-mounting. The protection level can reach IP66 and complies with NEMA 4X/12 standards. It is only suitable for indoor use and can cope with general dusty and humid industrial environments. There is a built-in braking IGBT to ensure braking stability, but there is no built-in braking resistor. An external resistor is required to achieve complete braking function. The standard electromagnetic compatibility filter can effectively reduce electromagnetic interference during operation and ensure the stable operation of itself and peripheral equipment.

Code Identification:

FAQ:

1.The “0” in bit 9 of 20AD011C0AYNANC0 indicates that the blank cover does not have a digital operation panel. If an operation panel needs to be added, which type of accessories should be matched?

The operation panel that 20AD011C0AYNANC0 is compatible with is the 20-HIM series:

1. 20-HIM-A3: Equipped with a complete LCD display and buttons, supports parameter reading and writing, troubleshooting, parameter copying, IP66 protection, compatible with multiple series of inverters, and has strong versatility.
2. 20-HIM-A1: Basic model, which meets the needs of start-stop and basic parameter adjustment. It is cost-effective and suitable for C-type rack installation.

2.20AD011C0AYNANC0 is a C-type rack. What are the specific requirements for installation space and fixing torque during installation?

1. Installation space requirements: ensure smooth cooling airflow and avoid overheating of the equipment. There are clear standards for the specific minimum installation clearance. You need to reserve 152.4 mm (6.0 inches) in the vertical direction (the distance between top and bottom and other equipment or obstructions); you need to reserve 38.1 mm (1.5 inches) in the horizontal direction (the distance between both sides and other equipment or walls). At the same time, it should be noted that the installation location must avoid a closed space. If it is installed in a cabinet, it must also ensure that the overall heat dissipation of the cabinet is good, and the cabinet structure cannot hinder the inlet and exhaust flow of the frequency converter.
2. Fixing torque requirements: It is necessary to distinguish between fixing the equipment shell and installing internal components. The corresponding torques for different parts are different. First, the shell cover is fixed. When installing the top and bottom protective covers of the inverter, the fixing screws need to be tightened to a torque of 1.5 N·m (approximately 13.3 pounds·inch) to prevent the cover from loosening and affecting the protection effect; the second is wall/rack fixation. When using a matching mounting bracket to wall-mount or machine-mount, it is recommended to use M6 or M8 specification screws. Refer to the general standard for C-type racks of the same series, and the tightening torque is controlled at 4.0 – 4.5 N·m, which not only ensures stable installation, but also prevents damage to the frame or mounting surface due to excessive torque.
