PowerFlex 40 0.75 kW 1 HP AC Drive 22B-D2P3N104

PowerFlex 40 AC Drive, 380…480V AC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size B, Panel Mount – IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485

• NEMA 1/IP31 tough – Handles wood dust, oil mist and Midwest humidity swings.
• 1HP muscle for 200-240V plants – Pre-tuned for common U.S. single-phase/3-phase motors (no buck transformer needed)
• 150% overload for 60 sec – Powers through conveyor jams like a Detroit diesel.

Series Products:

• 22B-D2P3C104：PowerFlex 40 AC Drive, 380…480V AC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485
• 22B-D2P3F104：PowerFlex 40 AC Drive, 380…480V AC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size B, Flange Mount – IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485
• 22B-D2P3H204：PowerFlex 40 AC Drive, 380…480V AC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size B, Replacement Plate Drive – IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485

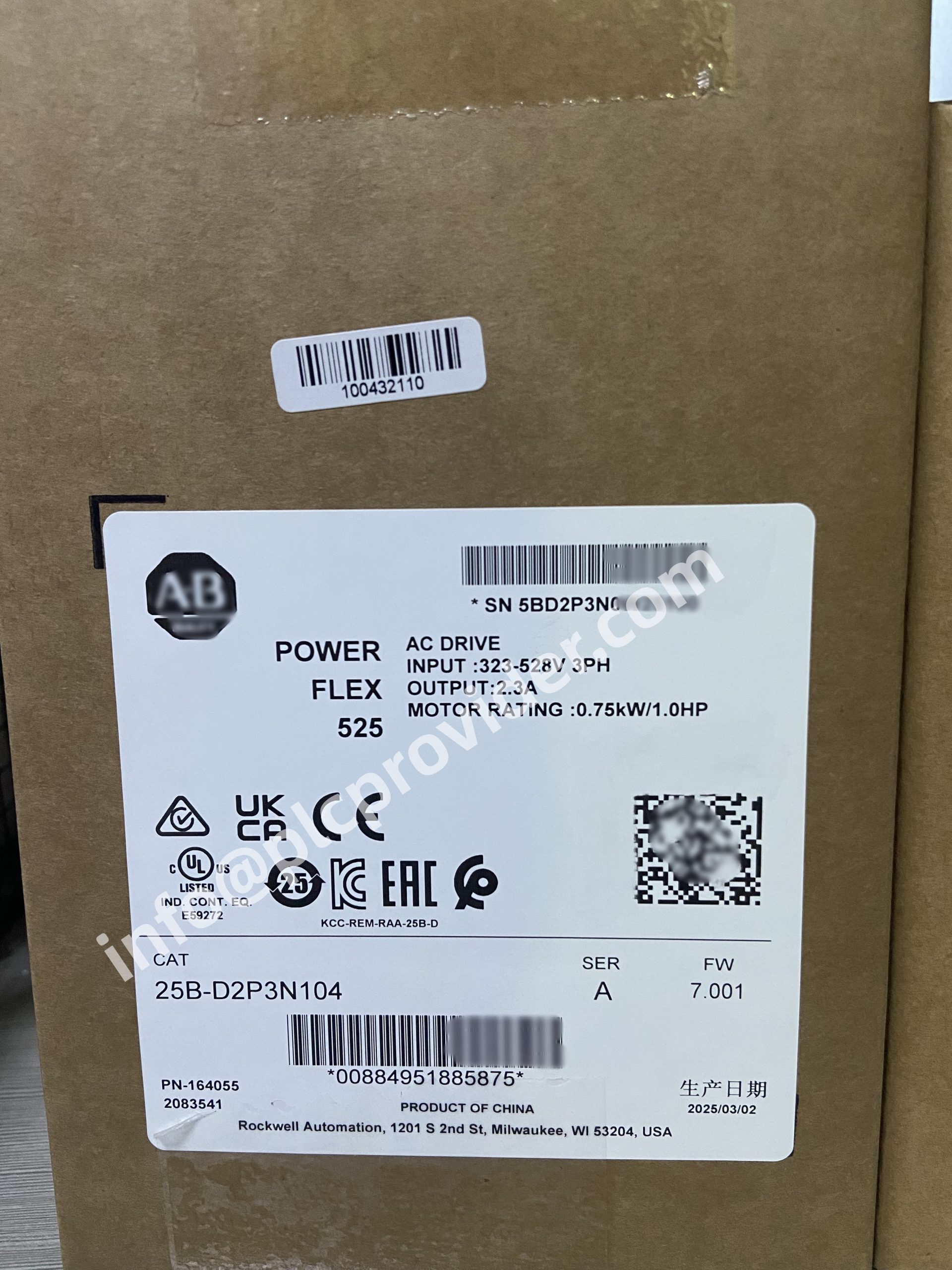

• 25B-D2P3N104：PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 2.3 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter

22B-D2P3N104 is a PowerFlex 40 series AC inverter, focusing on flexible speed control of small industrial motors.

This model has been announced to be discontinued on June 30, 2025, and the replacement product is 25B-D2P3N104.

22B-D2P3N104 is adapted to 3-phase 480V AC, with an output rated power of 0.75kW (1 horsepower) and a rated current of 2.3A. The output frequency can be adjusted between 0 – 400Hz, which can meet the speed regulation needs of most small motors. Its operating frequency is adapted to 50 – 60Hz, the power factor reaches 0.98, and the operating environment temperature range is – 10℃ – 50℃ (reduced capacity is required above 40℃). The body adopts B frame design and the overall structure is compact.

Core functions of 25B-D2P3N104:

1. Control mode: supports V/F, sensorless vector/closed-loop vector and permanent magnet motor control, with PID, jump frequency, fan/pump exclusive curve and sleep function.
2. Communication programming: built-in EtherNet/IP, RS485 interface, supports Modbus RTU and other protocols, can be programmed by USB or software, and is equipped with an operation panel to facilitate on-site debugging.
3. Safety protection: It has PLd/SIL2 level safe torque-off function, built-in braking IGBT, current-limiting protection, and IP20 protection suitable for control cabinet installation.
4. Practical design: The compact A-frame supports stacking installation, wide temperature adaptation, rich input and output interfaces, and can be connected to various industrial components.
