OPERATOR PANEL OP77A 4.5Inch 6AV6641-0BA11-0AX0 HMI

Products Introduce

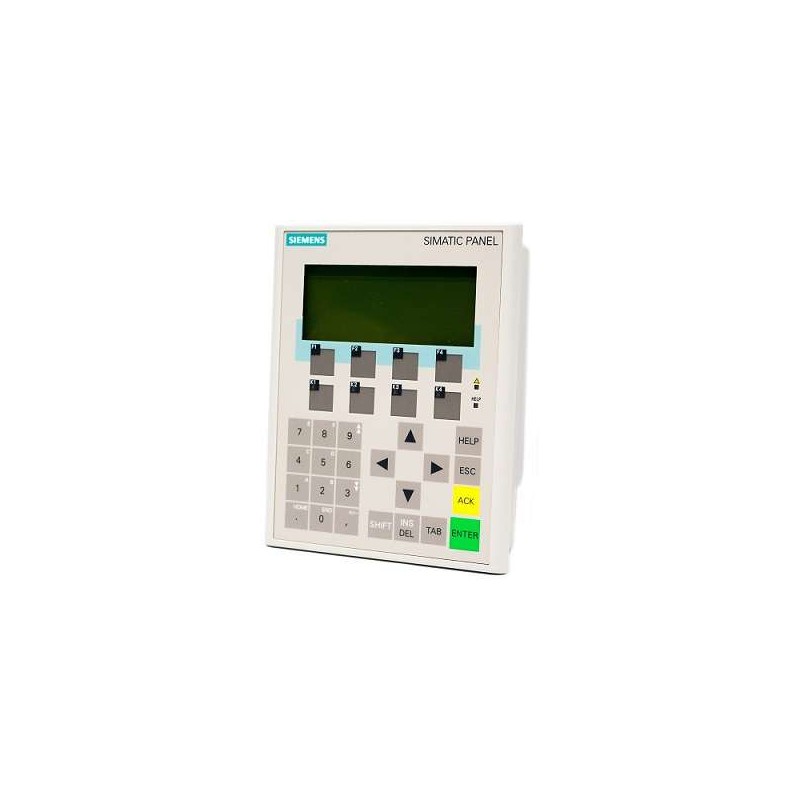

6AV6641-0BA11-0AX0 is an OP77A model operator panel under the SIMATIC series. It is equipped with a 4.5-inch monochrome dot matrix LCD display with backlight, supports graphic display, and can clearly display parameters even under unstable lighting conditions in the factory. The body weighs only 0.2 kg, making it easy to install and carry. The equipment protection level reaches IP65, which can resist the intrusion of dust and moisture. It can work stably in the environment of 0-50℃ temperature, no more than 80% non-condensing humidity and an altitude of less than 1000 meters. It is suitable for most harsh industrial working conditions. It also has 8 system function keys, 4 of which are freely programmable to suit personalized operation needs. Equipped with MPI and PROFIBUS-DP dual interfaces, the data transmission rate can reach up to 1.5MB, which can quickly realize real-time data interaction with PLC and other equipment to ensure the production line response efficiency. In terms of configuration, it can be adapted to at least WinCC flexible 2004 Compact HSP version software, and is equipped with related open source software.

6AV6641-0BA11-0AX0 has been discontinued, the replacement model is 6AV6641-0BA11-0AX1

FAQ:

1.When configuring the 6AV6641-0BA11-0AX0 panel with WinCC flexible software, what version compatibility issues should be paid attention to?

1. Minimum software version: ≥WinCC flexible 2004 Compact HSP is required. Higher versions (2005/2007) are compatible, but advanced functions that are not supported by the panel need to be disabled.
2. System version synchronization: The panel OS version must match the configuration project version. If incompatible, use ProSave software to downgrade the panel system version.
3. Computer system adaptation: The old version of WinCC flexible is adapted to Windows XP. On Win10 and above systems, it needs to be run in compatibility mode + administrator rights to avoid dependency component conflicts.
4. Cross-series configuration is prohibited: other branch software such as WinCC V7/Unified is not available, and the driver does not match the hardware.

2.What are the functional differences between the replacement model 6AV6641-0BA11-0AX0 and the original model 6AV6641-0BA11-0AX1?

1. The core functions are completely consistent: the core hardware and communication and configuration capabilities of the two models are completely matched. Both are equipped with a 4.5-inch monochrome LCD display with backlight, supporting graphic display; equipped with MPI and PROFIBUS-DP interfaces, with communication rates up to 1.5MB; all configurations are at least compatible with WinCC flexible 2004 Compact HSP version software, and all support practical functions such as panel installation, data protection, and memory card transfer projects, and can be adapted to the same small industrial automation control scenarios.
2. The supporting details are slightly optimized: the alternative model 6AV6641 – 0BA11 – 0AX1 is clearly marked as supporting open source software and will be accompanied by related CDs. Although the original model also supports related open source software adaptation, it is not marked as a standard included configuration. This optimization allows users to more easily obtain supporting software resources when debugging alternative models on site, without having to separately search for adapted versions, reducing the complexity of initial deployment.
3. Optimization of production and supply compatibility: After the original model 6AV6641-0BA11-0AX0 was discontinued, 6AV6641-0BA11-0AX1 As an alternative model, the production process will be adapted to follow-up Siemens supply chain standards, and more stable and adaptable batch accessories may be selected for component selection. However, these optimizations do not change the functional parameters of the equipment. They are only minor adjustments to ensure long-term supply and operational stability, and do not affect the interchange with the original equipment and the direct reuse of the configuration program.

In summary, the two can be seamlessly replaced. The configuration program of the original model can be directly used on the replacement model without modification, and no additional adaptation and debugging is required.
