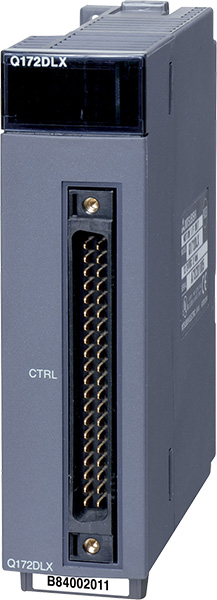

Mitsubishi Q Series PLC Q172DLX Motion Control Module

2-axis control, linear/circular interpolation, Q-bus integration with Q Series PLCs, MR-J4/MR-J5 servo amplifier compatibility, GX Works3 programmable (motion function blocks), High-precision encoder feedback (closed-loop)

• High-Precision Feedback: Utilizes real-time encoder data to maintain accuracy, even in high-speed or variable-load operations.
• Axis Capacity: Controls up to 2 axes, supporting interpolated motion (linear and circular) for coordinated multi-axis operations.
• Advanced Motion Modes: Supports absolute/relative positioning, speed/torque control, electronic gearing, and cam synchronization for complex trajectories.
• Interface Compatibility: Connects to servo amplifiers (e.g., Mitsubishi MR-J4/MR-J5 series) via encoder feedback and control signals, enabling closed-loop precision.
