Overview

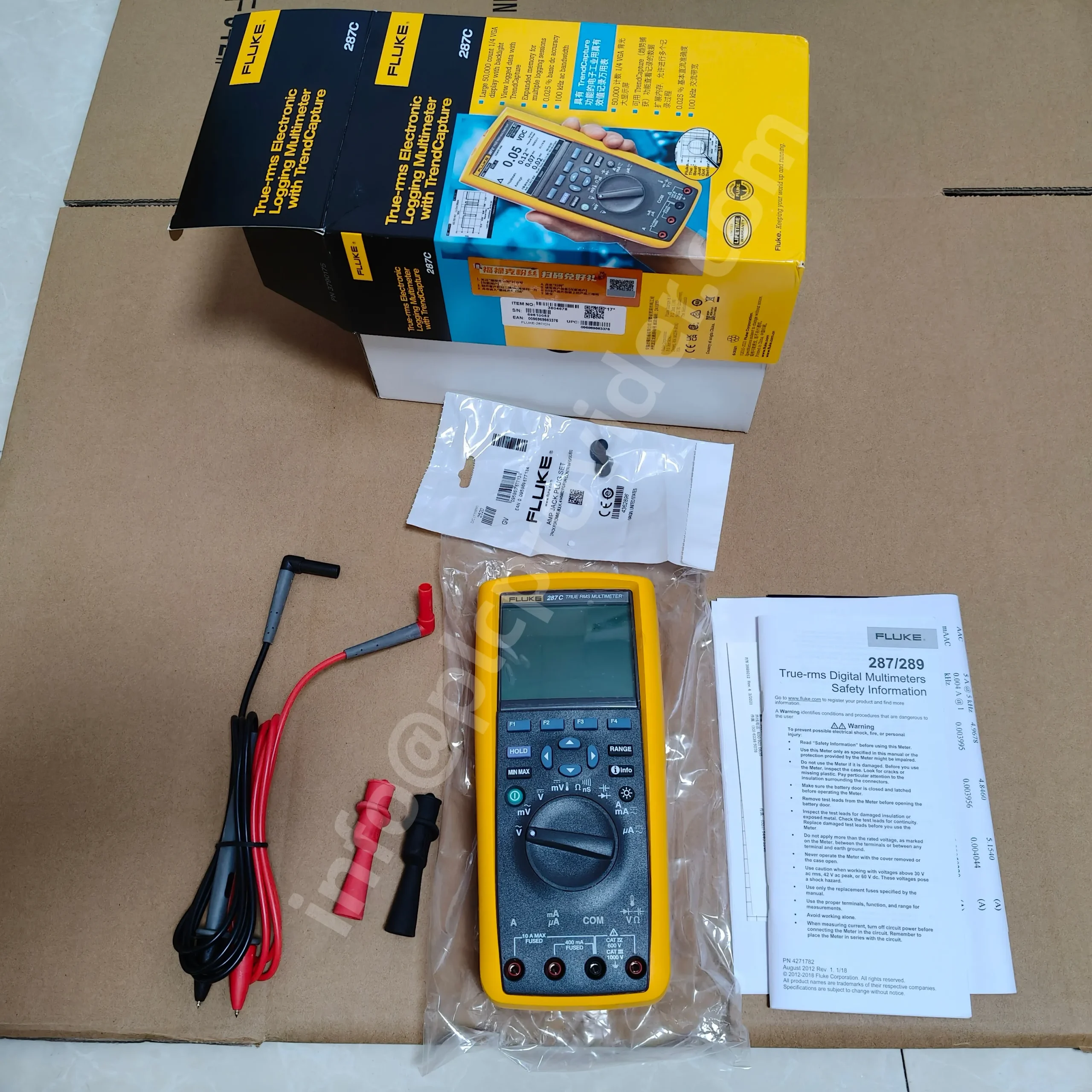

The Fluke Multimeter Fluke 287C – A 4.5-digit high-precision multimeter with backlit dot matrix display. Capable of 50,000 counts (DCV): Measurement range 50mV to 1000V, capable of capturing 250μs transient signals. Real-time graphical trend display. Built-in storage for 10,000 readings. With timestamp. Records automatic marking of time. Protection up to one meter height. Standard with TL71 test leads, AC72 crocodile clips, and batteries.
Specification
| Item | Specification |
|---|---|
| Model | Fluke 287C |
| Product Type | True-RMS Electronic Logging Multimeter |
| Display Count | 50,000 counts, 4.5-digit, 160×160 backlit dot matrix LCD |
| DC Voltage Range & Accuracy | 50mV～1000V, Basic accuracy 0.025%, Res:0.1mV |
| AC Voltage(True RMS) | 50mV～1000V, Accuracy 0.4%, Bandwidth up to 100kHz |
| DC Current | 500μA～10A, Accuracy 0.05%; 10A continuous, 20A max 30s |
| AC Current(True RMS) | 500μA～10A, Accuracy 0.6% |
| Resistance | Up to 50MΩ, Continuity beep & Diode test(2V) |
| Capacitance | Max 50mF |
| Frequency | 99.999Hz～999.99kHz, Accuracy 0.005% |
| Temperature | -200℃～1350℃, Accuracy 1.0% |
| Peak Capture | 250μs transient capture |
| TrendCapture Function | Graphical trend recording on-screen |
| Internal Memory | 10,000 logged readings with timestamp |
| Real Time Clock | Built-in for data time tagging |
| REL Mode | Relative measurement to zero offset |
| Safety Rating | CAT III 1000V / CAT IV 600V(IEC61010-1) |
| Drop & Vibration | 1m drop resistant, MIL-PRF-28800F Class 2 vibration |
| Operating Temp | -20℃～+55℃ |
| Power Supply | 6×AA batteries, Typical runtime 100hrs; 200hrs in logging mode |
| Dimension(W×H×D) | 222mm×102mm×60mm |
| Weight | 871g |
| Optional Accessory | IR3000FC IR wireless adapter, compatible with FlukeView Forms |
| Standard Accessories | TL71 test leads, AC72 alligator clips, batteries |
FAQ
1.What measurement functions does the Fluke 287C have?
The Equipped with TrendCapture graphical trend recording, true RMS AC/DC voltage/current, resistance, on/off, diode, capacitor, frequency, temperature, 250μs transient peak capture, REL relative zeroing, data storage recording functions.
2.What are the count and bit specifications displayed on the Fluke 287C multimeter?
Supported. The 50,000 count, 4.5 digits, 160×160 backlit dot matrix display screen.
3.What is the maximum bandwidth of the Fluke 287C AC voltage measurement?
The The 100kHz
4.How long does the regular operation and the recording mode of the Fluke 287C instrument last?
The
- Regular measurement mode: At least 100 hours
- Data logging mode: 200 hours
Looking for Original New Fluke 287C Backlit Dot Matrix Screen With 4.5 Digit Resolution For Data Recording
We supply this RX41C4-TS mainly to system integrators and maintenance teams for replacement and retrofit projects.
