Overview
The Allen‑Bradley PanelView 800 2711R-T10T 10-inch touch screen HMI with color TFT LCD, widescreen, 800 MHz processor, built-in 256 MB DDR RAM, 1×RJ45, 1×USB 2.0 Host, 24 VDC (18–32 VDC), IP66, supports VNC remote monitoring, recipe management, historical data
Specification
| Item | Specification |
|---|---|
| Model | 2711R-T10T |
| Series | Allen-Bradley PanelView 800 HMI |
| Screen Size | 10.4 inch TFT Color LCD |
| Resolution | 800 × 600 (SVGA) |
| Display Color | 65K Colors |
| Touch Type | Analog Resistive Touch Screen |
| Processor | 800 MHz |
| System RAM | 256 MB |
| Internal Flash Memory | 256 MB |
| Storage Expansion | MicroSD Card (Max 32GB) |
| Ethernet Port | 10/100 Mbps RJ45 |
| Serial Interface | RS-232 / RS-422/485 |
| USB Port | 1 × USB 2.0 Host |
| Power Supply | 18~32 VDC, Rated 24 VDC |
| Power Consumption | About 14W |
| Front Panel Protection | IP66, NEMA 4X/12/13 |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Main Function | Equipment monitoring, parameter setting, alarm record |
| Compatible PLC | Micro800, CompactLogix series |
FAQ
1.Which serial communication interfaces are equipped on the 2711R-T10T?
The RS-232 and RS-422/485 serial communication interfaces
2.What is the internal flash memory capacity of the 2711R-T10T, and what is the maximum expansion capacity for memory cards it supports?
Supported. The Built-in flash memory: 256MB, 32GB MicroSD expansion storage card
3.How many USB interfaces are there on the 2711R-T10T body?
The At the One USB 2.0 main interface
4.What is the transmission rate of the Ethernet interface that comes with 2711R-T10T?
The 10/100Mbps

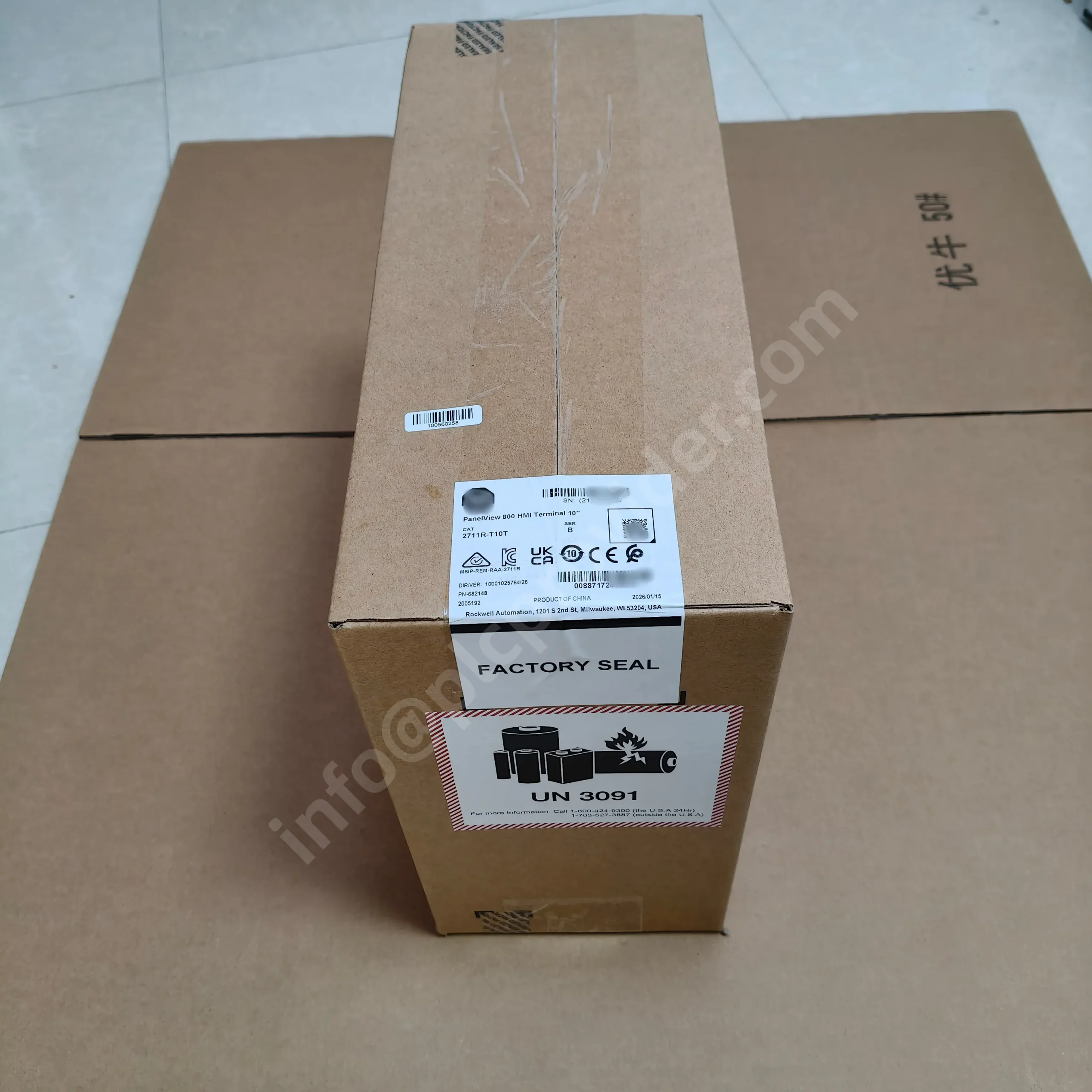

Looking for Original New 2711R-T10T 10Inch Touch Screen HMI TFT LCD 24 VDC IP66 Supporting VNC
We supply this 2711R-T10T mainly to system integrators and maintenance teams for replacement and retrofit projects.
Contact US to get a good prices now !
