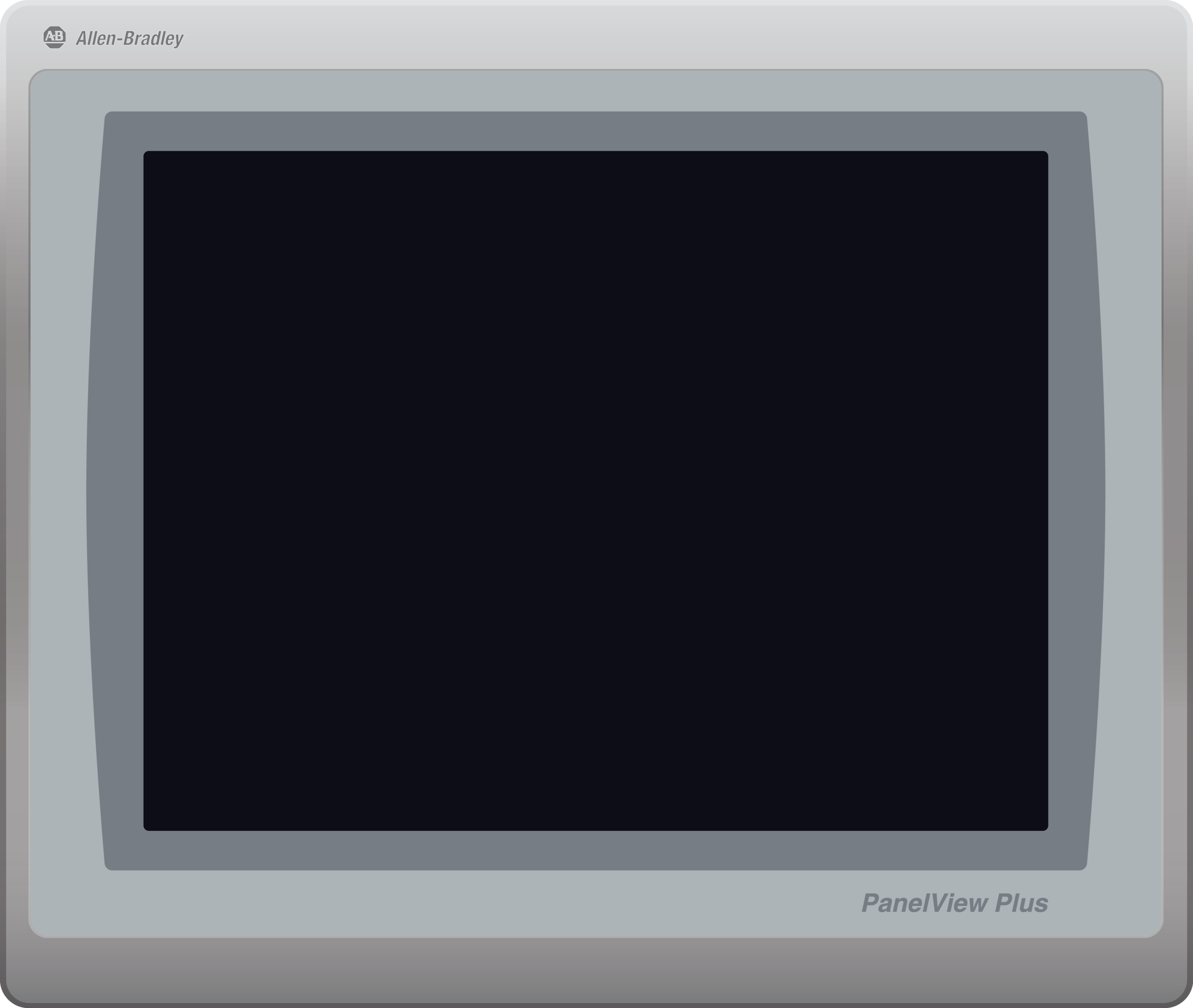

2711P-RDT10C Color Touch 10.4 Inch PanelView Plus Display

Manufacturer	Allen Bradley
Part Number	2711P-RDT10C
Product Type	Panel

Send Inquiry

Global Delivery

12 months Warranty

100 % Authentic Parts

Dispatch immediately

24 hours to 7 Days

Hassle-free return

Category: Allen Bradley Panel Tags: Allen Bradley, Allen Bradley 2711P, Panel, Panelview Brand: Allen Bradley

Description
Reviews (0)

Overview

2711P-RDT10C is a 10.4-inch color touch display module of PanelView Plus 1000 series, 10.4-inch TFT color, 640×480 resolution, 18-bit color depth, display area 211×158mm, 8-wire analog resistive, supports finger/stylus/gloved operation, CCFL, lifespan of about 50,000 hours at 25°C, adaptable 2711P-RP1/RP2 Logic Module and PanelView Plus 1000 Terminal with Touch Bezel, Discontinued on December 30, 2021.

Key Feature

Parameter	2711P-RDT10C	2711P-RDT12C	2711P-T10C4D8	2711P-T10C22D9P
Product Type	PanelView Plus 1000 10.4″ Color Touch Display Module (Replacement)	PanelView Plus 1250 12″ Color Touch Display Module (Replacement)	PanelView Plus 6 10.4″ HMI Terminal	PanelView Plus 7 10.4″ HMI Terminal (Performance)
Display	10.4″ TFT, 640×480, 18-bit color, 211×158 mm	12″ TFT, 800×600	10.4″ TFT, 640×480	10.4″ TFT, 640×480
Touch Technology	8-wire analog resistive, 1M actuations, 10–110g force	8-wire analog resistive	8-wire analog resistive	8-wire analog resistive
Backlight	CCFL, ~50,000 hrs (25°C)	CCFL	LED	LED
OS	N/A (Display Module, depends on Logic Module)	N/A	Windows CE 6.0	Windows 10 IoT
Key I/O/Comm	N/A (Display Module, no standalone I/O/Comm)	N/A	1×Ethernet, 1×RS-232, 2×USB	2×Ethernet (DLR), multiple USB
Mounting	224×305 mm cutout, 55 mm depth, ~2.6 kg	Different cutout	285×226×57 mm	Similar form factor, minor difference
Enclosure Rating	NEMA 12/13/4X (Indoor), IP54/IP65	Same as RDT10C	NEMA 12/13/4X, IP65	NEMA 12/13/4X, IP65
Compatibility	2711P-RP1/RP2 Logic Modules	2711P-RP3 Logic Modules	Standalone	Standalone
Status	Discontinued (Dec 30, 2021)	Discontinued	Active	Active
Core Purpose	Repair replacement for PVP 1000	Repair replacement for PVP 1250	HMI Terminal	HMI Terminal (Higher performance)

FAQ:

1.Can the 2711P-RDT10C be used as a standalone HMI terminal?

cannot. 2711P-RDT10C is a pure display touch module without independent processor, operating system and communication interface. It needs to be matched with 2711P-RP1/RP2 logic module to form a complete HMI terminal function. It is only used for repair and replacement of faulty display modules.

2.What logic modules is the 2711P-RDT10C compatible with?

2711P-RDT10C is compatible with the following logic modules:

2711P-RP1
2711P-RP2
2711P-RP8D
2711P-RP9D

3.What is the essential difference between 2711P-RDT10C and 2711P-T10C4D8?

Dimension	2711P-RDT10C	2711P-T10C4D8
Product Type	PanelView Plus 1000 Display & Touch Replacement Module	PanelView Plus 6 1000 Complete HMI Terminal
Core Components	Display + touch only, no processor/OS/communication	Display + touch + logic module + processor + OS + communication
Standalone Operation	No, must be paired with logic modules like 2711P-RP1/RP2	Yes, factory-integrated complete system, ready for standalone deployment
Communication Interfaces	None (depends on paired logic module)	Ethernet, RS-232, 2×USB
OS & Storage	None (depends on paired logic module)	Windows CE 6.0, 512MB Flash + 512MB RAM
Core Purpose	Repair and replacement of faulty display modules	Directly used for equipment monitoring, operation and data interaction
Lifecycle Status	Discontinued on Dec 30, 2021	Discontinued on Dec 30, 2021, replaced by 2711P-T10C22D9P
