Overview

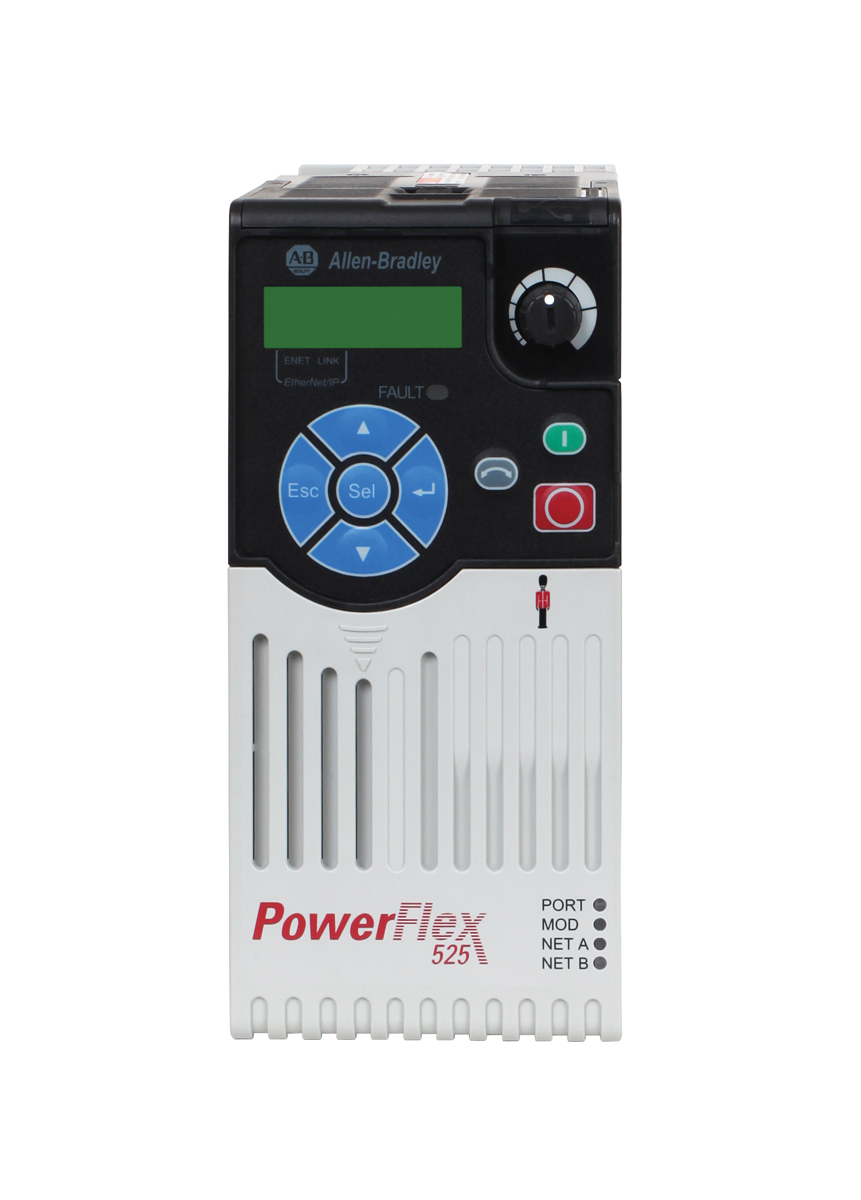

The PowerFlex 525 AC 25B-D030N114 three-phase 380-480VAC standard load ND: 15kW/20HP Built-in braking IGBT Standard STO safety torque cut-off Equipped with integrated operation panel IP20 wall-mounted / Standard DIN rail installation, supports zero stacking and side-by-side installation Built-in EMC input filter
Specification
| Item | Specification |
|---|---|
| Model | 25B-D030N114 |
| Brand & Series | Allen-Bradley (Rockwell Automation) PowerFlex 525 AC Drive, D-frame |
| Input Voltage | 3-phase 380~480VAC, -15%~+10% tolerance, 47~63Hz |
| Input Filter | Built-in EMC input filter |
| Rated Output Current | 30A |
| Normal Duty (ND) Rating | 15kW / 20HP |
| Heavy Duty (HD) Rating | 11kW / 15HP |
| Output Voltage Range | 0~460VAC |
| Output Frequency Range | 0~500Hz |
| Overall Power Factor | 0.98 |
| Braking Function | Built-in braking IGBT, supports dynamic braking with external braking resistor |
| Control Modes | V/F (Volts/Hertz) Control, Sensorless Vector Control (SVC), Permanent Magnet Motor Control (SPM/IPM), optional encoder closed-loop vector control |
| Starting Torque | 150% rated torque at 1Hz in SVC mode |
| Speed Regulation Ratio | 1:100 |
| Overload Capacity | ND: 110% rated current for 60s; HD: 150% rated current for 60s |
| Standard Digital I/O | 7 Digital Inputs (DI) + 4 Digital Outputs (DO) |
| Standard Analog I/O | 2 Analog Inputs (AI, 0~10V/4~20mA) + 1 Analog Output (AO) |
| Standard Communication | Built-in single-port EtherNet/IP, RS485 (Modbus/DSI), compatible with Allen-Bradley Logix PLC systems |
| Safety Function | Standard STO (Safe Torque Off), SIL2/PLd Cat.3 safety certification |
| Operator Interface | Integrated keypad, rotary knob, and LED digital display |
| Enclosure Rating | IP20 (NEMA Open) |
| Mounting Method | Wall mount or standard DIN rail mount, supports zero-stack side-by-side installation |
| Net Weight | Approx. 5.4kg |
| Operating Temperature | -10℃~+50℃ without output derating |
| Full Protection Functions | Overcurrent, short-circuit, overvoltage, undervoltage, overheating, motor overload, output ground fault, input phase loss protection |
| Compliance Certifications | CE, UL, RoHS, meets global industrial automation standards |
FAQ
1.What types of motor control methods does the 25B-D030N114 inverter have?
The V/F frequency control, sensorless vector SVC, permanent magnet SPM/IPM motor control, optional encoder closed-loop vector control
2.25B-D030N114. What are the respective power outputs for the normal load and the heavy load?
Supported. The
- ND：15kW/20HP
- HD：11kW/15HP
3.Which standard communication interfaces are included in the 25B-D030N114 inverter?
The
- Built-in EtherNet/IP network port (RJ45, supporting DLR ring network, compatible with AB Logix series PLC)
- RS485/DSI serial ports, supporting Modbus RTU protocol
- Type-B USB debugging port
4.Does the 25B-D030N114 aircraft body integrate the operation panel and digital display?
The The body is equipped with built-in buttons, adjustment knobs and an LED digital display.
Looking for Original New 25B-D030N114 Three phase 380 480VAC Built in EMC Input Filter
We supply this 25B-D030N114 mainly to system integrators and maintenance teams for replacement and retrofit projects.
Contact US to get a good prices now !
