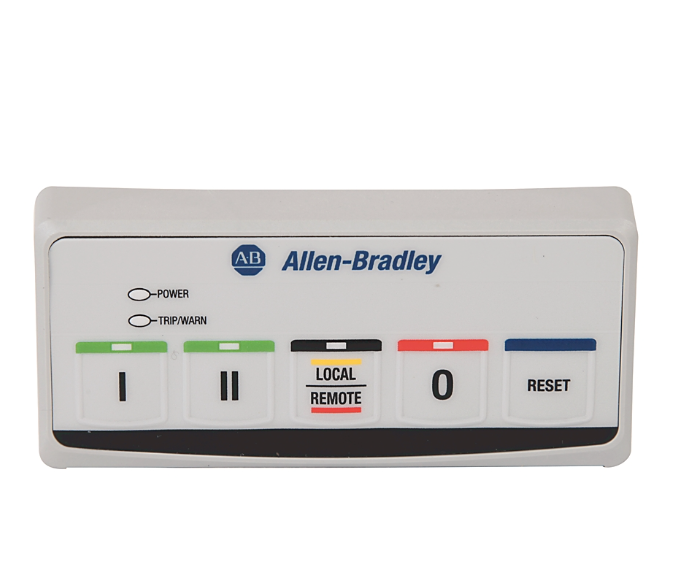

Overview
The AB 193-EOS-SCS E300 does not require an external power supply. It operates on DC 5V and is IP65 dustproof and waterproof. It is plug-and-play and features three-color LED for intuitive display of operation / warning / fault. It has independent on-site start/stop / reset capabilities independent of the control cabinet.
Specification
| Parameter Item | Specification |
|---|---|
| Brand | Allen‑Bradley (Rockwell Automation) |
| Product Model | 193-EOS-SCS |
| Product Type | E300 Starter Control Station |
| Compatible Device | E300 / E200 Electronic Overload Relay |
| Power Supply | Powered by E300 expansion bus, no external power required |
| Standard Cable Length | 3m |
| Protection Grade | IP65 |
| Housing Material | Flame-retardant ABS |
| Installation Method | Wall mounting |
| Operating Temperature | -25℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Weight | Approximately 0.4kg |
| Certification | CE, UL, CSA, CCC, RCM, KC |
| Configuration | Start / Stop / Reset button with three-color LED indicator |
FAQ
1.193-EOS-SCS employs what kind of power supply method?
The E300 expansion bus is powered internally and does not require an external independent power supply.
2.What are the buttons on the 193-EOS-SCS panel? How many status indicator lights are equipped?
Supported. The
1 Button configuration: Green start button, red stop button, black reset button.
2 Indicator lights: There are 3 types in total, green power operation light, yellow overload warning light, and red fault trip light.
3.What is the standard cable length for 193-EOS-SCS?
The At the 3 meters (can be customized to a longer length)
4.Which devices are compatible with 193-EOS-SCS?
The E300 and E200 series electronic overload relays
