Overview
The 1756-EN2TRXT ControlLogix-XT Dual-Port Embedded Switch Real-time I/O Control Corrosion-resistant, salt spray, humidity-resistant Temperature: -25°C ~ +70°C Compatible with Studio 5000 software configuration
| Item | Specification |
|---|---|
| Product Series | ControlLogix-XT (Extended Environment) |
| Module Type | Dual-port EtherNet/IP Communication Module |
| Chassis Slot | Single-slot 1756 chassis |
| Backplane Power | 5.1V DC, 1.0A |
| Ethernet Ports | 2 × RJ45 |
| Data Rate | 10/100 Mbps auto-negotiation |
| Network Topology | DLR (Device Level Ring), Linear, Star |
| USB Port | 1 × USB 1.1 (12 Mbps) for configuration |
| TCP/IP Connections | 128 |
| Logix Connections | 256 |
| CIP Messaging | Backplane: 128; Ethernet: 256 |
| Packet Rate | I/O: 10,000 pps; HMI/Messaging: 1,000 pps |
| Motion Support | Up to 8 axes of EtherNet/IP motion control |
| Operating Temperature | -25°C ~ +70°C |
| Humidity | 5–95% (non-condensing) |
| Environmental Protection | Conformal coating, corrosion & salt fog resistant |
| Certifications | UL, CE, ATEX, IECEx |
| Key Functions | Embedded dual-port switch, DLR redundancy, CIP Sync, real-time I/O control |
FAQ
1.1756‑EN2TRXT has several Ethernet ports. What is the type of the interface?
The Two Ethernet ports, with interface type being RJ45
2.1756‑EN2TRXT supports which network topologies?
Supported. The DC 5.1V，1.0A。
3.1756‑EN2TRXT does it have a triple protection coating and what is its protective capability?
The Resistant to corrosion, salt fog and moisture. Suitable for harsh industrial environments.
4.How many ports does the 1756‑EN2TRXTCIP message support on the backplane and the Ethernet respectively?
The
- Back panel CIP messages: 128
- Ethernet CIP messages: 256

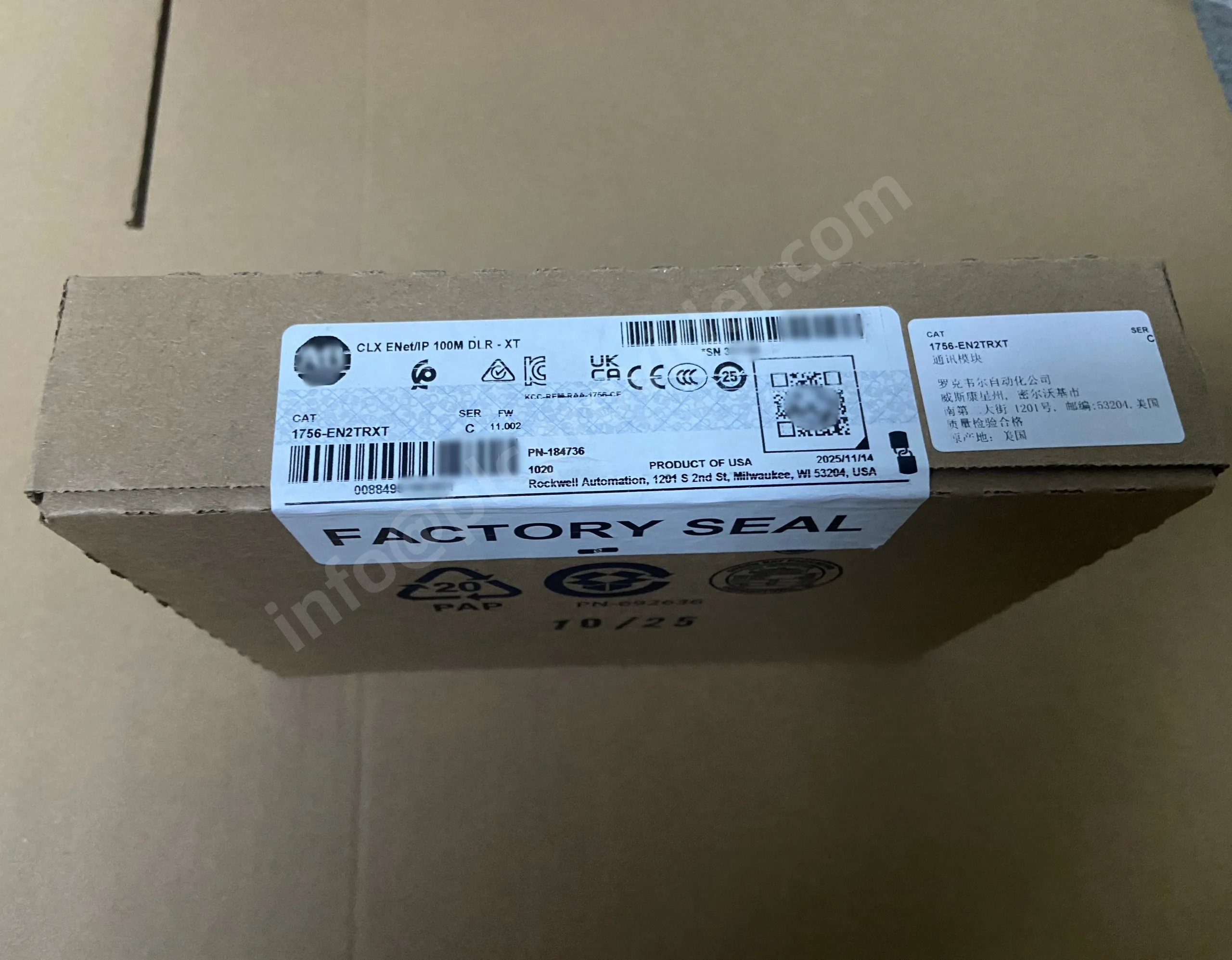

Looking for Original New 1756-EN2TRXT Dual Port EtherNet IP Communication Module Supports DLR Real time I O Control
We supply this 1756-EN2TRXT mainly to system integrators and maintenance teams for replacement and retrofit projects.
Contact US to get a good prices now !
