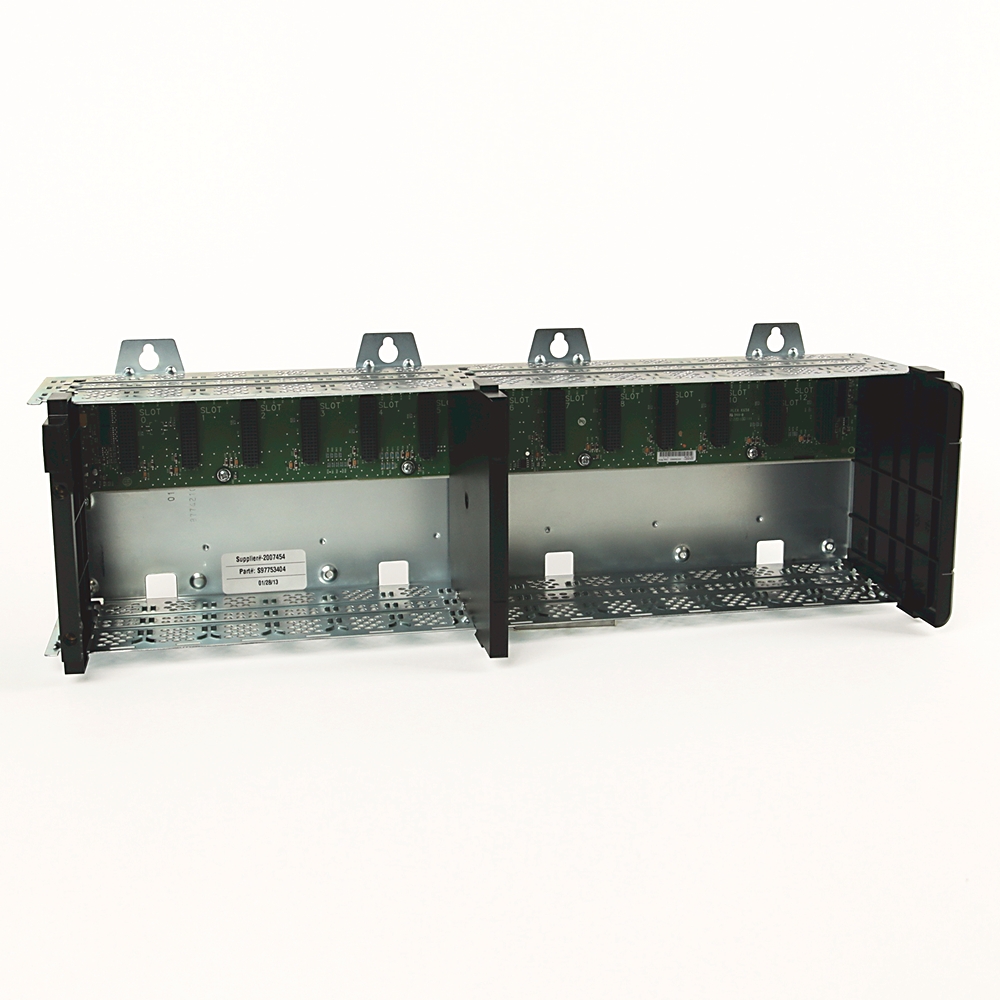

1756-A13 ControlLogix 13 Slots Chassis

Product Introduce:

1756-A13 is a 13-slot standard rack of the ControlLogix series. It provides 13 standard slots for installing ControlLogix series processors, power supplies, I/O, communication and other modules. It supports redundant power supply configuration and is compatible with all ControlLogix series power modules (such as 1756-PB72, 1756-PA75), processor modules (such as 1756-L7x) and various I/Os. module, supports hot-swappable modules, the backplane bus transmission rate meets the real-time control requirements of the ControlLogix system, and supports distributed I/O expansion and multi-rack interconnection.

FAQ:

1.Are the 13 slots of the 1756-A13 rack functionally partitioned? In which slots are the processors and communication modules recommended to be installed?

There is no mandatory physical functional partitioning for the 13 slots of the 1756-A13 rack:

1. Power module: installed in the leftmost independent power supply slot and does not occupy the 13 standard slots.
2. Processor module: Slot 0 is recommended to improve bus communication efficiency.
3. Communication module: Slot 1/2 is recommended, close to the processor to reduce latency.
4. I/O and other functional modules: Slots 3–12 can be installed freely and arranged in groups as needed.

2.What is the maximum backplane bus transfer rate supported by the 1756-A13? Can it meet the needs of multi-module high real-time data interaction?

The maximum transmission rate of the backplane bus of the 1756-A13 rack is 5Gbps:

1. The speed supports efficient transmission: the 5Gbps high-speed backplane bus can greatly shorten the data transmission time of modules between 13 slots. For example, instruction issuance and data feedback between the processor and adjacent communication modules and various I/O modules can basically achieve delay-free transmission, which meets the core requirements for data transmission speed in industrial control scenarios.
2. Adaptable to multi-module fully configured scenarios: In application scenarios such as large water treatment plants, it can simultaneously accommodate multiple types of modules such as 2 1756-L7x processors, 4 I/O modules, and 3 communication modules. Its backplane bus can achieve millisecond-level data synchronization between these modules. That is, 13 slots can be fully configured with various functional modules, and there will be no data congestion problem.
3. Adapt to system real-time control requirements: Adapt to all types of modules such as processors, communications, and I/O of the ControlLogix series, and support high-frequency data transmission communication methods such as ControlNet and EtherNet/IP. Whether it is conventional production line I/O signal collection or complex motion control instruction interaction, you can rely on the high-speed backplane to ensure real-time response of the control logic and avoid control deviations caused by transmission delays.
