Introduction
In industrial automation, one of the most frustrating troubleshooting scenarios is:
The sensor is working, the wiring looks fine, but the PLC input LED is not turning on.
At this point, engineers often ask:
- Is the sensor faulty?
- Is there a wiring issue?
- Or is the PLC input module already damaged?
Misjudging the root cause can waste hours — or even lead to unnecessary module replacement.
This guide will walk you through a simple and reliable method to distinguish between:
👉 External wiring problems
👉 Sensor issues
👉 PLC input module failure
How Does a PLC “See” an Input Signal?
Before troubleshooting, you must understand one key principle:
A PLC input module does not “see” switches or sensors — it only detects voltage.
The input module converts external signals into digital states:
- Voltage present → Input = ON (1)
- No voltage → Input = OFF (0)
Common Input Types
There are two standard wiring types:
NPN (Sinking Input)
- COM connected to +24V
- Signal switches to 0V
- Common in Japanese systems (Mitsubishi, etc.)
PNP (Sourcing Input)
- COM connected to 0V
- Signal switches to +24V
- Common in European systems (Siemens, Allen-Bradley)
👉 Regardless of type, the core logic is the same:
If correct voltage reaches the input terminal but the PLC does not respond → the module is likely faulty
Step-by-Step Troubleshooting Method (3 Steps)
Step 1: Confirm COM Wiring
First, identify how the input module is wired:
- For PNP input → COM = 0V
- For NPN input → COM = +24V
⚠️ If COM is incorrectly wired or loose, the input will never work.
Step 2: Measure Voltage Using a Multimeter
Set your multimeter to:
👉 DC Voltage (20V or higher)
Measure between:
- Black probe → COM terminal
- Red probe → Input terminal (e.g., X0, I0.0)
Step 3: Observe Voltage + LED (Critical Step)
Now trigger the signal (press switch or activate sensor).
Normal Condition
- Voltage changes from ~0V → ~24V
- PLC input LED turns ON
- Software input status = ON
👉 System is working normally
Fault Condition: Module Damage
- Voltage changes correctly (~24V present)
- PLC input LED stays OFF
- Software still shows OFF
👉 Conclusion: PLC input module is damaged
This usually means:
- Internal optocoupler failure
- Input circuit burned
Real Case Example
A packaging line experienced the following issue:
- Proximity sensor LED ON
- Cylinder not responding
- PLC input X5 LED OFF
Troubleshooting Process
- Sensor replaced → No change
- Wiring checked → No issue
- Voltage measured at X5 → 23.8V stable
Diagnosis
- Voltage reached PLC input
- PLC did not respond
👉 Input point X5 was damaged
Solution
- Rewired signal from X5 → X10 (spare input)
- Updated PLC program
✔ Machine resumed normal operation
✔ No need to replace entire PLC
Common Misjudgments (Important)
1. “Fake Voltage” (No Load Condition)
Sometimes you measure 24V, but:
- Voltage drops when load is connected
- Sensor output is too weak
👉 Not a PLC issue — sensor or wiring problem
2. COM Connection Problems
Loose or broken COM wiring can cause:
- Multiple inputs failing
- Unstable signals
👉 Always check COM first before replacing modules
Why This Method Works
This method isolates the system into two parts:
External Side
- Sensor
- Wiring
- Power supply
Internal Side
- PLC input circuit
👉 If voltage reaches the terminal correctly:
✔ External system = OK
❌ PLC module = suspect
Related PLC and Input Modules
In real maintenance scenarios, commonly used modules include:
Siemens PLC Systems
- S7-1200: 6ES7214-1AG40-0XB0
- S7-1500: 6ES7511-1AK02-0AB0
Allen-Bradley Systems

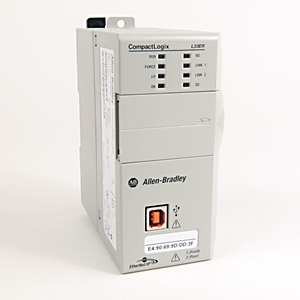

- CompactLogix: 1769-L24ER-QB1B
- ControlLogix: 1756-IB16 input module
Typical Digital Input Modules
- Siemens SM1221 DI modules
- AB 1756 / 1769 series input cards
These modules are widely used in:
- Conveyor systems
- Packaging machines
- Assembly lines
Best Practices for Engineers
✔ Always verify voltage before replacing modules
✔ Understand NPN vs PNP wiring
✔ Use spare input points when available
✔ Avoid blind module replacement
✔ Keep input modules in stock for critical systems
Conclusion
When a PLC input LED does not turn on:
Do not guess — measure.
The key rule is simple:
- Voltage normal + LED OFF → Module fault
- Voltage abnormal → External issue
This approach helps you:
- Save troubleshooting time
- Avoid unnecessary replacement
- Improve maintenance efficiency
