ControlLogix 5580 is a high-performance programmable automation controller (PAC) under AB and is an advanced representative of the ControlLogix series. It is designed to meet the strict requirements of modern industrial automation for speed, capacity and safety, providing a powerful platform for discrete control, motion control, process automation and safety applications.

The ControlLogix 5580 controller helps enable faster system performance, capacity, productivity and security to help meet the growing demands of smart machines and equipment for manufacturing.

The ControlLogix 5580 controller with Studio 5000 software connects people and processes to enable the Connected Enterprise.

Table of Contents

ControlLogix 5580 Controller Features

Enhanced performance and troubleshooting

Provides up to 45% more capacity

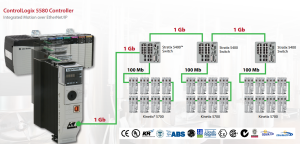

• 1 gigabit (Gb) embedded Ethernet port enables high-speed I/O and motion control
• Controller functions optimized for maximum system performance
• Display provides enhanced diagnostics and troubleshooting

Added security and capabilities

• Energy storage module removes the need for a battery
• Controller-based change detection and logging enable added security
• Digitally-signed controller firmware adds another layer of security
• Provides role-based access control to routines and Add-On Instructions
• Conformal Coating options to help protect in harsh environments

Feature

1756-L8IE,

1756-L8IEK

1756-L81E-NSE

1756-L8IE-NSEXT,

1756-L8IEXT,

1756-L8IEP

1756-L8IEPXT

1756-L82E,

1756-L82EK,

1756-L82E-NSE,

1756-L82E-NSEXT,

1756-L82EXT,

1756-L83E,

1756-L83EK,

1756-L83E-NSE

1756-L83E-NSEXT,

1756-L83EXT,

1756-L83EP.

1756-L83EPXT

1756-L84E,

1756-L84EK,

1756-L84E-NSE

1756-L84E-NSEXT,

1756-L84EXT

1756-L85E,1756-L85EK, 1756-L85E-NSE,

1756-L85E-NSEXT,

1756-L85EXT,

1756-L85EP.

1756-L85EPXT

User Memory

3MB

5MB

10MB

20 MB

40 MB

EtherNet/IP nodes supported,max

60 nodes3

00 nodes4

80 nodes3

75 nodes(4

00 nodes2

250 nodes¹

150 nodes3)

250 nodesl4)

300 nodes5

Communication ports

1-USB port,2.0 ful-speed,Type B

1-EtherNet/IP port:10 Mbps,10 Mbps,1Gbps link speeds

Communication options

·EtherNet/P

·ControlNet

·DeviceNet

·Data Highway Plus

·Remote I/0

·SynchLinkl

·Third-party process and device networks

CIP Security

See CIP Security.

Controller tasks

·32 tasks

·1000 programs/task

·Event tasks:allevent trgers

Integrated motion

·Integrated Motion on the EtherNet/IP network

·Sercos interface

·Analog options⁶.

-Encoder input

-Linear displacement transducer (LDT)input

-Serial Synchronous Input(SSI)

Programming languages

·Ladder Diagram(LD)

·Structured Text (ST)

·Function Block Diagram(FBD)

·Sequential Function Chart (SFC)

Feature	1756-L81ES, 1756-L81ESK, 1756-L8IEXTS 1756-L81ESXT	1756-L82ES, 1756-L82ESK, 1756-L82EXTS, 1756-L82ESXT	1756-L83ES, 1756-L83ESK, 1756-L83EXTS, 1756-L83ESXT	1756-L84ES, 1756-L84ESK, 1756-L84EXTS, 1756-L84ESXT	1756-L85ESI
User Memory	3MB	5MB	0 MB	20 MB	40MB
Safety Memory	1.5 MB	2.5MB	5MB	6MB	3MB
EtherNet/P nodes supported,max	100	175	250	250	300
Communication ports	1-USB port,2.0 full-speed.Type B 1-EtherNet/P port:10 Mbps,100 Mbps,1Gbps link speeds
Communication options	·EtherNet/IP(T756-EWEB cannot be used for safety connections) ·Support for Network Address Iranslation(NAT) ·ControlNet ·DeviceNet ·Data Highway Plus ·Remote I/D ·SynchLinklW ·Third-party process and device networks
CIP Security	See CIP Security.
Controller tasks	·3I standard tasks,1safety task ·1000 programs/task ·Event tasks:allevent triggers
Integrated motion	Integrated motion is supported in standard task only. ·Integrated Motion on the EtherNet/P network ·Sercos interface ·Analog options: -Encoder input -Linear displacement transducer(LDT)input -Serial Synchronous Input(SSI)
Programming languages	·For the safety task,GuardLogix controles support Ladder Diagram only. ·For standard tasks,BuardLogix controllers support: -Ladder Diagram(LD) -Structured Text(ST) -Function Block Diagram(FBD) -Sequential Function Chart (SFC)
Integrated safety	·Integrated safety on the EtherNet/P network(Kinetixdrives,Powerflex drives,safety components) ·Distribute and control safety I/D(over EtherNet/Pand DeviceNet networks only) ·Praduce and consume safety tag data.
Controller Features	·Data access control ·Firmware Supervisor ·Secure Digital(SD)card ·Safety Connections ·Standard Connections

ControlLogix 5580 Controller Function

Achieve SIL CL 2 / PLd using the main controller
SIL CL 3 / PLE is implemented using the main controller and safety partners
Optimize the safety response time to achieve coverage of protective devices and reduce the risk of injury
The range of standard memory options provided is 3… 20 MB
The range of provided secure memory options is 1.5… 6 MB
The range of provided communication options is 100… 250 EtherNet/IP nodes
Offer surface coating options for harsh environments
Provide a single controller/software/network for standard and safety control
Including free combination of security and standard I/O
Provide network security features with motion and the following frequency converters: Kinetix 5700 with frequency converter security and PowerFlex 755 with frequency converter security

ControlLogix 5580 Controller Part Number

Standard Part Number	1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E
No Stored Energy (NSE) Part Number	1756-L81E-NSE, 1756-L82E-NSE, 1756-L83E-NSE, 1756-L84E-NSE, 1756-L85E-NSE, 1756-L81E-NSEXT, 1756-L82E-NSEXT, 1756-L83E-NSEXT, 1756-L84E-NSEXT, 1756-L85E-NSEXT
Process Part Number	1756-L81EP, 1756-L83EP, 1756-L85EP, 1756-L81EPXT, 1756-L83EPXT, 1756-L85EPXT
Harsh Environment Part Number	1756-L81EK, 1756-L82EK, 1756-L83EK, 1756-L84EK, 1756-L85EK, 1756-L81EXT, 1756-L82EXT, 1756-L83EXT, 1756-L84EXT, 1756-L85EXT

The application scenarios of the ControlLogix 5580 Controller, a secure controller

The ControlLogix 5580 safety controller (model with “S” suffix) is mainly applied in scenarios where there are strict requirements for personnel, equipment and process safety. Typical examples include:

Automobile manufacturing: Welding line robot workstation, achieving safety door monitoring and emergency stop interlock to prevent personnel from entering dangerous areas by mistake
Chemical production: Safety control of pressure equipment such as reaction vessels and storage tanks to ensure automatic shutdown in case of overpressure or overheating
Metallurgical industry: Safety interlocks for rolling mills and continuous casting machines to prevent mechanical damage when equipment gets stuck
Logistics and warehousing: Safety control of stacker cranes in automated stereoscopic warehouses to prevent the risks of collision and falling
Food and medicine: Safety protection for sterilization equipment and high-pressure homogenizers to ensure the safety of operators
Energy industry: Safety shutdown control for wind power pitch systems and photovoltaic inverters to deal with extreme working conditions

Conclusion

The ControlLogix 5580 series covers the demands of medium and small-sized to large complex automation systems through various models. Among them, the 5585 series features a 1.7GHz main frequency, 256-axis motion control capability, and 64 MB of data memory. Become the first choice for high-end industrial control scenarios (such as automotive welding and assembly lines, large-scale metallurgical equipment); The 5581 series, on the other hand, is suitable for small and medium-sized production lines with moderate performance requirements. The entire series supports modular expansion and industrial interconnection, providing a flexible and reliable control core for intelligent manufacturing.
